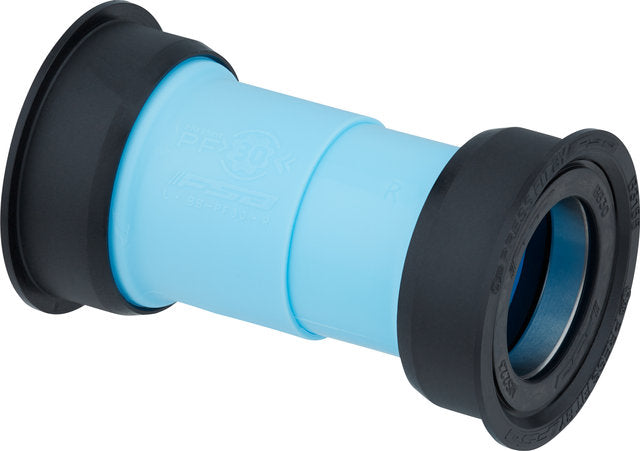

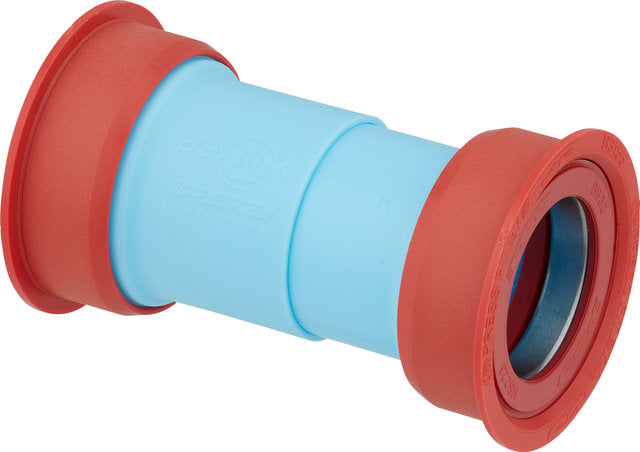

Fsa pf30 road bottom bracket 46 x 68-86.5 mm

Product Description A variant of the BB30 design: the Press Fit 30 Bottom Bracket by FSA Press fit refers to one of the newer bottom bracket standards, and was first introduced to the market by SRAM as Press Fit 30. The bearings are located in bearing cups that are pressed directly into the bottom bracket shell. Characteristic is the installation dimension of 46 mm and the shell width of 68 / 73 mm or 86.5 mm. A PF30 bottom bracket always takes only one axle with 30 mm diameter - hence the name. Specifications:Application:Road, Cross CountryType:Press Fit PF30, BB386EVOShell Diameter:46 mmShell Width:68-86.5 mmAxle Diameter:30 mmTechnical Information:Bearings:steel or ceramicCompatibility:BB30 Road cranksBB386EVO cranks* * when installed in a BB386EVO frame. If a BB386EVO crank is to be mounted in a Press Fit 30 frame, an additional MW258A adapter is required. Note: The 200-3112 bottom bracket also does the following: Installation of FSA MegaExo NBD, MegaExo Pinch Bolt, Shimano and SRAM GXP Road cranks in BB386EVO framesInstallation of FSA MegaExo NBD, MegaExo Pinch Bolt and Shimano Road cranks in Press Fit 30 framesInstallation of FSA BB386EVO, MegaExo NBD and MegaExo Pinch Bolt Road cranks in Cannondale press fit 30A 73 mm framesInstallation of FSA BB386EVO Road cranks in BBRight Press Fit 79 mm framesInstallation of FSA BB392EVO, MegaExo NBD 24 mm, MegaExo NBD 19 mm, MegaExo Pinch Bolt 24 mm and Shimano MTB cranks in 68/73 mm PF30 framesAdditional adapters and spacers are required. The 200-3111 bottom bracket also does the following: Installation of FSA MegaExo NBD Road cranks in BB386EVO framesInstallation of FSA MegaExo NBD Road cranks in Press Fit 30 framesInstallation of FSA BB392EVO, MegaExo NBD 24 mm, MegaExo Pinch Bolt 24 mm and Shimano MTB cranks in 68/73 mm PF30 framesAdditional adapters and spacers are required. Models:Standard: Bearings: steelRecommended Cranks: SL-K Light, Energy, Gossamer Pro, Omega, Vision TriMax ProModel Number: BB-PF6000/CZManufacturer Number: 200-3112 ceramic: Bearings: ceramicRecommended Cranks: K-Force Light, TriMax Carbon TTModel Number: BB-PF8200/CZManufacturer Number: 200-3111Contents:1 x FSA PF 30 right bearing cup, incl. bearings and sleeve1 x FSA PF 30 left bearing cup, incl. bearings and sleeve1 x FSA bottom bracket centre sleeve1 x spring wave washerincl. dust cap Weight: red: 76 g Manufacturer: F.S.A. S.R.L. Via Francesco Petrarca. 4 20123 Milan Italy info@fullspeedahead.com
