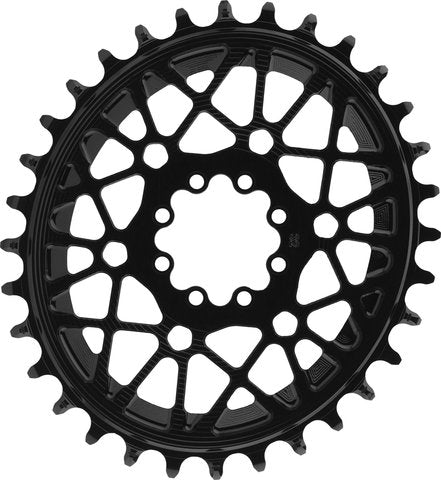

Absoluteblack oval t-type chainring for sram transmission 3 mm offset

Product Description The absoluteBLACK Oval T-Type chainring for SRAM Transmission with 3 mm offset This oval 1x chainring by absoluteBLACK was specially designed for SRAM Eagle transmission drives. It features a special Narrow-Wide tooth profile that works perfectly with the T-Type chains. These are narrower than conventional chains because the distance between the outer and inner plates is smaller, and they have more generously dimensioned rollers. That is why the teeth of the absoluteBLACK T-Type chainring are generally thinner and the spaces between the teeth are more pronounced. In addition, there are specific features that ensure good self-cleaning, such as a horizontal channel on the wide teeth and a specific modification in the area closest to the back of the crank arm. This optimally repels mud, sand and dirt, which is particularly important for narrow chains. The premium quality aluminium chainring is compatible with SRAM XX SL, XX, X0 Eagle Transmission and other cranks with Direct Mount 8-bolt mounts. It has an offset of 3 mm - like the original from SRAM - so it is suitable for a 55 mm chainline. Thanks to the oval shape, you optimise your pedalling movement, reduce the strain on your knees and move forward faster. Specifications:Application:Enduro, All Mountain, Cross CountryMount:SRAM Direct MountTeeth:28 T, 30 T, 32 T, 34 T, 36 TGearing:1x12-speedType:Oval 10.2 - 14.4 %Technical Information:Offset:3 mmChainline:55 mmMaterial:aluminium (7075)Compatibility:Crank:SRAM XX SL Eagle Transmission, XX Eagle Transmission, X0 Eagle Transmission with a 8-bolt mountChain:SRAM T-Type FlattopFeatures:special Narrow-Wide chainring for SRAM Transmission T-Type chainsthinner teeth due to narrower distance between inner and outer chain plateslarger space between the teeth due to wider diameter of the chain rollersexcellent dirt repellency: horizontal channel at about half the height of the wider teeth and modification of one tooth in the area behind the crank armoval shape for improved traction and performance uphillfaster, looser riding with a natural pedalling motion with reduced strain on the kneesovality and timing (110.5 - 116.3°) matched to chainring size (TDC technology, Top Dead Center)excellent weight to stiffness ratiovery good chain retention, long durability and low noise developmentdurable construction, CNC-machinedanodisedpremium quality and great aestheticdesigned in Great Britain, manufactured in PolandTechnology:Oval Chainrings Oval chainrings follow the natural physiology of humans. They maximise pedalling power the moment it is developed and minimise resistance when it is not. As a result, oval chainrings allow the rider to pedal more smoothly and stay loose on the climb. In fact, your pedal stroke will feel " rounder" with an oval chainring than with a round chainring. Compared to round chainrings, oval chainrings address more muscle groups - but each of them to a lesser degree. The total load of pedalling is therefore distributed over a larger muscle mass and the knees are less strained. This has three advantages: 1. The legs remain fresher and more relaxed. 2. You can go uphill faster. 3. Spreading the load over more muscles reduces the susceptibility to cramps, even with great effort. Ultimately this will increase your riding pleasure. For MTB applications, the rear wheel traction is increased on loose and slippery surfaces, allowing you to make better progress on demanding terrain. Manufacturer Numbers:black / 28 tooth:SROVTTYPE3/28BKblack / 30 tooth:SROVTTYPE3/30BKblack / 32 tooth:SROVTTYPE3/32BKblack / 34 tooth:SROVTTYPE3/34BKblack / 36 tooth:SROVTTYPE3/36BKtitanium / 28 tooth:SROVTTYPE3/28TItitanium / 30 tooth:SROVTTYPE3/30TItitanium / 32 tooth:SROVTTYPE3/32TItitanium / 34 tooth:SROVTTYPE3/34TItitanium / 36 tooth:SROVTTYPE3/36TIred / 28 tooth:SROVTTYPE3/28RDred / 30 tooth:SROVTTYPE3/30RDred / 32 tooth:SROVTTYPE3/32RDred / 34 tooth:SROVTTYPE3/34RDred / 36 tooth:SROVTTYPE3/36RDgold / 28 tooth:SROVTTYPE3/28GLgold / 30 tooth:SROVTTYPE3/30GLgold / 32 tooth:SROVTTYPE3/32GLgold / 34 tooth:SROVTTYPE3/34GLgold / 36 tooth:SROVTTYPE3/36GLContents:1 x absoluteBLACK Oval T-Type SRAM Transmission chainring Weight: black | 28 : 54 g black | 30 : 58 g black | 32 : 64 g black | 34 : 71 g black | 36 : 78 g Manufacturer: absoluteBLACK Ltd. Unit 6 88 Peterborough Rd. London SW6 3HH United Kingdom info@absoluteblack.cc Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
