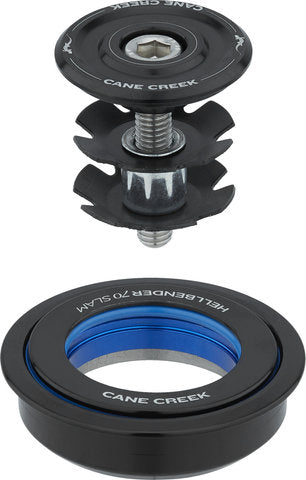

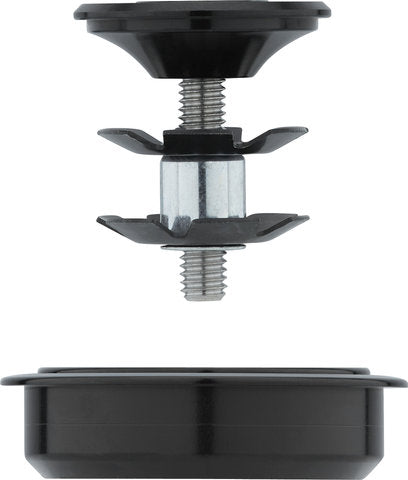

Cane creek hellbender 70 slam zs44 28.6 upper headset cup

Product Description The Cane Creek Hellbender 70 Slam upper headset cup in ZS44/28.6 - Durable and flat The Hellbender 70 Slam upper headset cup from Cane Creek in ZS44/28.6 is characterised above all by a low overall height and is therefore recommended for all those who prefer a flat cockpit. Thanks to the proven quality of the Hellbender 70 series, including a long-life, sealed stainless steel cartridge bearing, you don't have to compromise on durability. Use: Designed for 1 1/8" top head tubes in combination with 1 1/8" top forks. Specifications:Application:Road, Cyclocross, Gravel, Cross Country, All Mountain, EnduroDesign:Zero Stack (ZS)Upper Outer Diameter:44 mmUpper Inner Diameter:28.6 mmHead Tube:1 1/8" , 1 1/8" - 1 1/4" tapered, 1 1/8" - 1.5" tapered, 1 1/8" - 1 3/8" taperedSteerer Tube:1 1/8" , 1 1/8" - 1 1/4" tapered, 1 1/8" - 1.5" tapered, 1 1/8" - 1 3/8" taperedTechnical Information:Material:aluminium (6061-T6)Bearings:sealed Hellbender stainless steel cartridge bearingBearing Seat:45° x 36°Upper Stack Height:2 mmTop Cap:aluminiumFeatures:upper headset cup with low overall height for flat cockpit6 mm lower than Hellbender 70 headsetdurable designsuitable for carbon fork steerer tubeswith sealed premium Hellbender cartridge bearing made of stainless steelStandardized Headset Identification System (S.H.I.S.):In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the upper and lower part of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both upper and lower parts must be combined. Nomenclature:EC:Bearings contained within cups that are located outside of the frame (External Cup)ZS:Bearings contained within pressed-in cups where the cup and bearings rest inside the frame (Zero Stack)IS:Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)Manufacturer Number:BAA2163K Contents:, consisting of: 1 x bearing cup1 x stainless steel bearing1 x top cap1 x top caps1 x star nut1 x bolts Manufacturer: Cane Creek Cycling Components 355 Cane Creek Rd Fletcher NC 28732 USA info@canecreek.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
