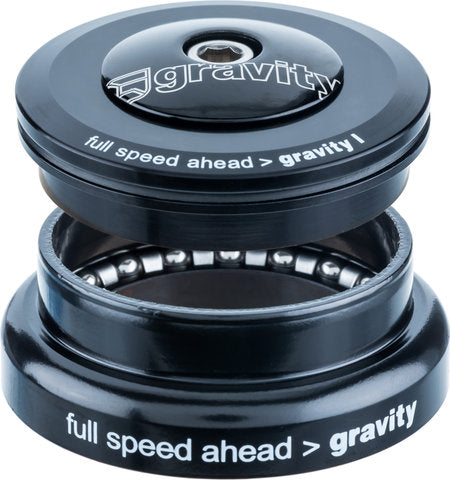

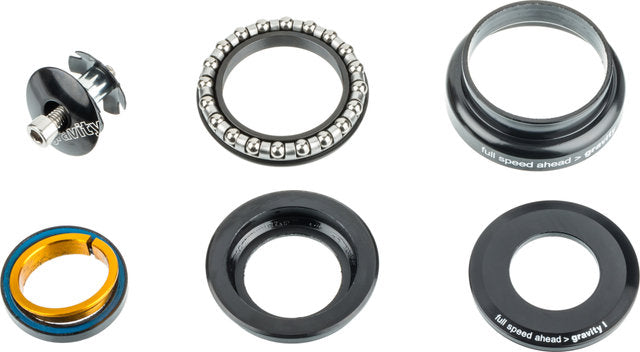

Fsa 1 (i e) zs49 28.6 - ec49 40 headset

Product Description FSA 1 (I/E) is a headset for a bolted 1.5" head tube in combination with a tapered steerer tube (1.5" - 1 1/8" ). Use:Designed for 1.5" upper and lower head tube diameters combined with 1 1/8" - 1.5" tapered forks.Specifications:Application:Enduro, All MountainTop Cup:1.5"Bottom Cup:1.5"Steerer Tube:1 1/8" - 1.5" taperedDesign:zero stack (ZS), external cup (EC)Technical Information:Material:aluminiumBearings:angular contact ball (36°/ 45° ACB, upper), CBB Ø 7/32" x20 (lower)Upper Insert Depth:10.7 mmLower Insert Depth:20 mmTop Stack Height:7.1 mmBottom Stack Height:11.7 mmTop Outer Diameter:49 mmTop Inner Diameter:28.6 mmBottom Outer Diameter:49 mmBottom Inner Diameter:40 mmSeals:blue sealTop Cap:aluminiumFeatures:for head tube inner diameter 49.57 mm = head tube outer diameter 55 mmforged top headset cup CNC-machined bottom headset cuptotal stack height: 18.8 mmStandardized Headset Identification System (S.H.I.S.):In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined. Nomenclature:EC:Bearings contained within headset cups that are located outside of the frame (External Cup)ZS:Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)IS:Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)Manufacturer Number:ZS49/28.6 - EC49/40:130-0018NContents:1 x FSA 1 top headset cup incl. bearings1 x FSA 1 bottom headset cup incl. bearings1 x FSA headset cap1 x compression ring1 x FSA Ahead cap1 x star nut with aluminium bolt1 x crown race Weight: black | 1 1/8" - 1,5" tapered | ZS49/28,6 - EC49/40: 151 g Manufacturer: F.S.A. S.R.L. Via Francesco Petrarca. 4 20123 Milan Italy info@fullspeedahead.com
